Twin model, automatic light self-refilling syringes
Socorex® ultra 2810
Tube feeding light Twin syringe
Socorex®ultra 2810 and classic 287
Syringe comparison
Features |
ultra 2810 |
classic 287 |
||
|
|
 |
 |
||
| Syringe handle | PA enriched with glass fibers | |||
| Plunger | Stainless steel | |||
| Plunger tightness | No O-ring | |||
| Nozzle | Metal Luer Lock | |||
| Disassembly | Easy access to all parts for maintenance, no tools needed | |||
| Spare parts | All parts available separately | |||
| Sterilization | Disassembled in boiling water or assembled in autoclave (121 °C / 250 °F) | |||
| Models | Tube and vial feeding | |||
| Weight* | 190 gr | 330 gr | ||
| Activation force* | ~29 N | ~42 N | ||
| Handle distance at rest | 55 mm | 70 mm | ||
| Syringe body | PA enriched with glass fiber | Nickel-chrome plated brass | ||
| Syringe barrel | Thick ground glass | Ground glass | ||
Volume ranges |
0.1 – 0.5 mL / 0.1 – 1 mL / 0.3 – 2 mL |
0.025 – 0.3 mL 0.1 – 0.5 mL / 0.1 – 1 mL / 0.3 – 2 mL 0.5 – 5 mL / 1 – 10 mL |
||
| Valve system | Compact valve cartridges | Metal valve springs and balls | ||
*Comparison for 1 mL volume syringes

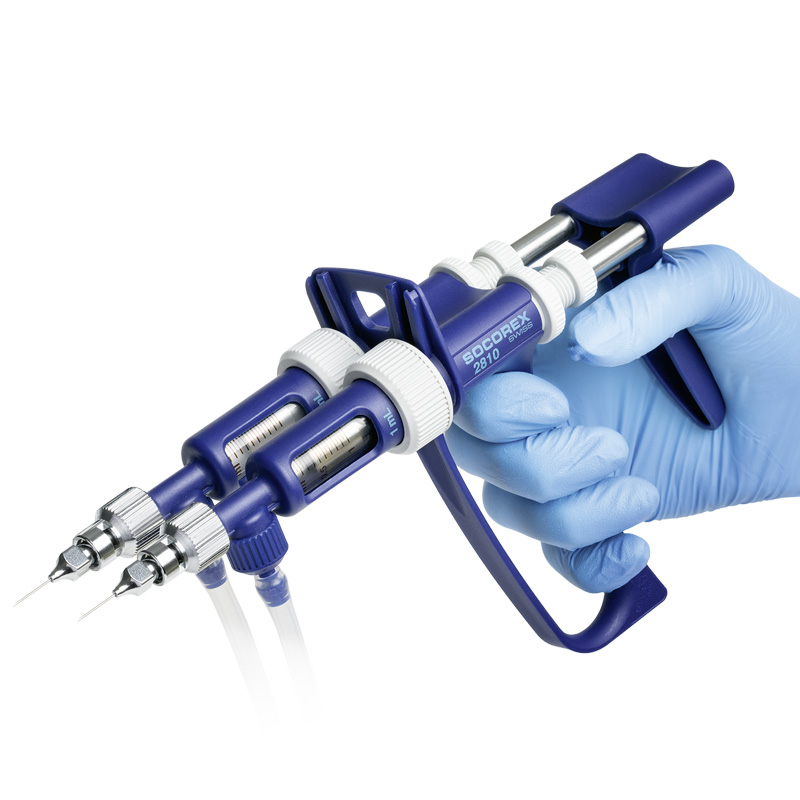

Engineered for the simultaneous administration of two distinct liquids, the Twin Syringe ultra 2810 combines precision and robustness with optimized user comfort. Available in three volume ranges: 0.1–0.5 mL, 0.1–1 mL, and 0.3–2 mL, and two models: tube and vial feeding. Ideal for use on medium and large animals. Needle spacing: 28 mm. No O-rings.
- Independent barrel and valve systems allowing separate volume adjustment tailored to your vaccination protocols
- Lightweight and impact-resistant body made from glass fibre-reinforced polyamide
- Thick glass barrels to minimize breakage
- Redesigned valve system with sealed cartridges – no more loose balls and springs
- Fully autoclavable
- All parts individually replaceable, ensuring long-term use and easy maintenance
Aspiration from belt-mounted bottles, hanging holders, or backpack containers .
Note: The Twin ultra 2810 is compatible with the existing stainless-steel manifold (Cat. No. 1.287.685), which enables injection of two separate liquids through a single needle.
0.1 - 0.5 mL
0.1 - 1 mL
0.3 - 2 mL
