Laboratory Division

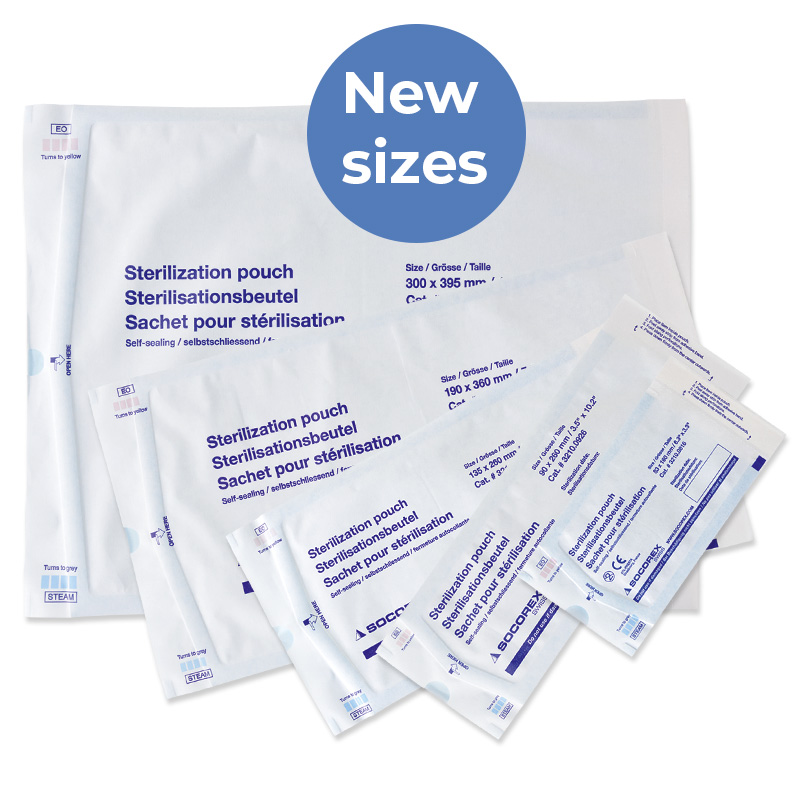

Sterilization pouches

Qualitix®
Sterilization pouches



Ordering information

Fitting any small to mid-size laboratory, medical, dental or veterinary device, the Qualitix® single use pouches provide easy and effective wrapping of items requiring sterilization. Made with robust medical grade paper, the pouches tightly close with a self-sealing strip to maintain sterility. Content remains always visible through PET / CPP transparent laminated film.

  • Robust, durable material
  • Quick content identification
  • Large self-sealing strip, easy to close
  • Chevron top seal for easy opening
  • Suitable for steam and EO gas sterilization
  • Two sterilization indicators
  • Five different sizes
  • Conformity to ISO 17665-06, ISO 11135, CE



Recommendation for use

  • Check integrity of pouch prior to using it
  • Pouch content must be clean and dry
  • Warning: sharp items to be positioned in opposite side of peel off direction
  • Item length should not exceed ¾ of pouch length

Autoclave at 121C Socorex PictoIVD Conform Socorex Picto





Sterilization Pouch Dimensions Socorex

Size



A (mm)



B (mm)



C (mm)



D (mm)

83 x 160 mm
3.3 x 6.3’’
  83     160   65    110
90 x 260 mm
3.5 x 10.2’’
  90   260   70   205
135 x 260 mm
5.3 x 10.2’’
  135   260   115   205
190 x 360 mm
7.5 x 14.2’’
  190   360   170   300
300 x 395 mm
11.8 x 15.6’’
  300   395   270   335



Size



Possible use



Illustration

83 x 160 mm
3.3 x 6.3’’
  All-glass syringes < 2 ml
Needles, cannulas, drenchers
Single channel volumetric module
  Sterilization Pouch 83x160 mm Socorex
90 x 260 mm
3.5 x 10.2’’
  All-glass syringes < 20 ml, scalpels
Needles, cannulas, drenchers
Multichannel volumetric modules
  Sterilization Pouch 90x260 mm Socorex
135  x 260 mm
5.3 x 10.2’’
  Acura® self-refill microdispenser,
2-ring syringe
Pasteur pipettes, macrotips
  Sterilization Pouch 135x260 mm Socorex
190 x 360 mm
7.5 x 14.2’’
  Micropipettes
Lab and Vet syringes, Tip racks
  Sterilization Pouch 190x360 mm Socorex
300 x 395 mm
11.8 x 15.6’’
  Compact dispensers, bottle-top dispensers   Sterilization Pouch 300x395 mm Socorex





Highlights

  • STP.0003 Self Sealing Quick Opening LAB 01 STP.0003 Self Sealing Quick Opening LAB 01
    Self-sealing - quick opening
  • STP.0002 Sterilization Indicators LAB 01 STP.0002 Sterilization Indicators LAB 01
    Sterilization indicators
  • STP.0001 Content And Integrity Control LAB 01 STP.0001 Content And Integrity Control LAB 01
    Integrity control

Videos & Documents

Find your distributor

Service & Calibration

  • Contact the Socorex Service & Calibration center for maintenance and calibration.

    Learn more
